The NewTec SMARTconnect enables the integration of all commercially available amplifier systems or active speakers into the NewTec SMART Audio System, as well as the integration of passive speakers.
Get an offerNewTec SMARTconnect

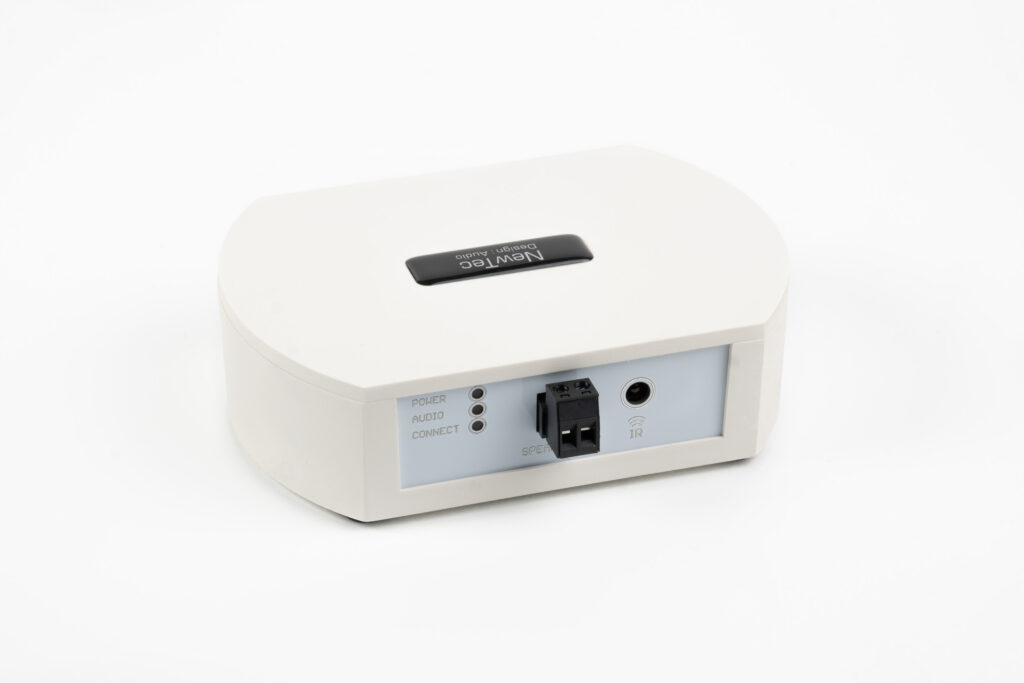

Radio receiver with integrated signal converter

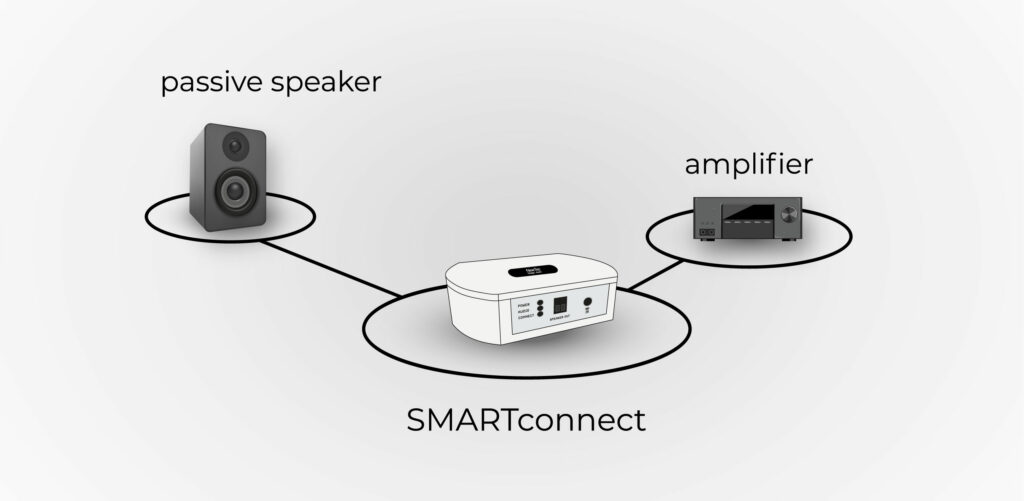

The NewTec SMARTconnect allows for the integration of all common amplifier systems or active speakers into the NewTec SMART Audio System, as well as the integration of passive speakers. The music signal transmitted by the SMARTplayer is received by the SMARTconnect and converted into a line signal, or amplified
The SMARTconnect, like all SMART Audio products, receives music via the reliable and interference-free 1.9 GHz nDect protocol.
Technical Data
Radio receiver for integrating active sound systems and passive speakers
| Colour | White |
| Dimensions | 140 x 40 x 115 mm |
| Material housing | ASA painted |
| Radio frequency | 1.9 GHz n-DECT |
| Audio output | TRS Mono line OUT |
| 40W 4Ω Speaker OUT |
| Weight | 240 g |
| Power supply | AC 100-240V / DC 12V / 2 A |
| Power connections | Power supply unit (included in the scope of delivery |
| Power consumption | Max. 20 watts |
