The new built-in loudspeaker CONO puro fits in perfectly with the new "small and simple" trend.
Get an offerBuilt-in loudspeaker CONO puro

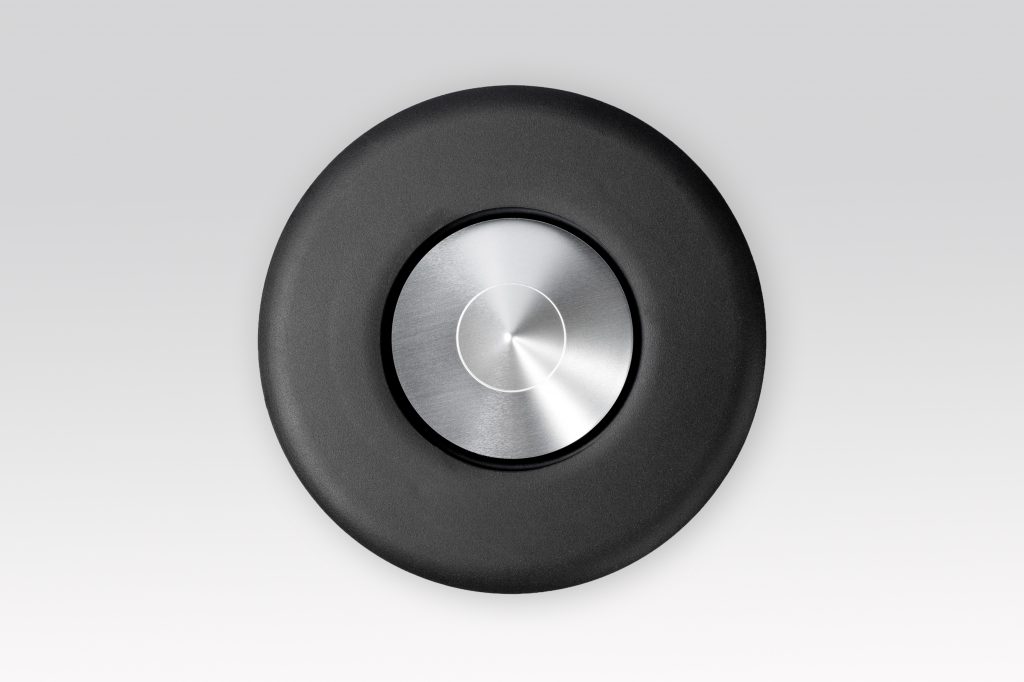

Pure optics for pure sound

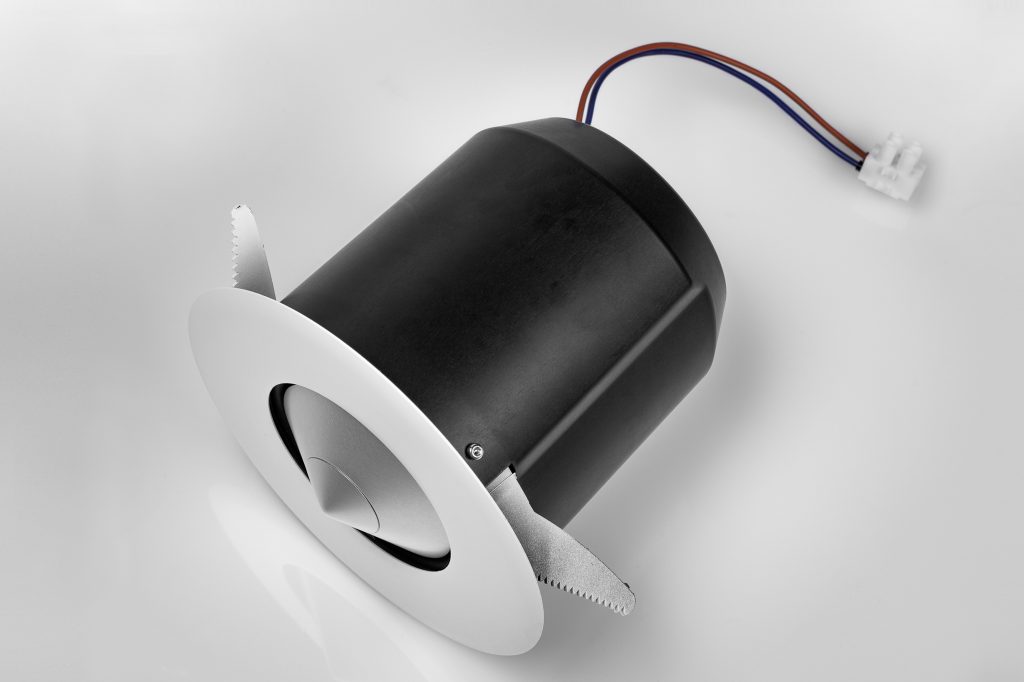

Design speaker and quick installation through twist-lock closure
The new built-in loudspeaker CONO puro fits in perfectly with the new “small and simple” trend. The diameter of CONO puro is only 150 mm. Furthermore, the new quick-release fastener means that screws are no longer required. This guarantees faster assembly and creates a pure look. The ring has a very thin material thickness so that the speaker can rest flat on the surface of the ceiling. The ceiling cut-out required for installation is 120 mm and the installation depth is 140 mm.
Technical Data
In-ceiling speaker
| Colours | White, black, silver |
| Dimensions | Ø 150 mm x 20 mm (vin view) |
| Material | Glass fibre reinforced ABS plastic |
| CONO puro 50 | CONO puro M | CONO puro S | CONO puro V | |
|---|---|---|---|---|
| Principle | Full-range 360° | Full-range 360° | Full-range 360° | Full-range 360° |
| Nominal power | 50 W / 90 W | 50 W / 90 W | 100 W / 180 W | 5-10-20 W adjustable |
| Impedance | 16 Ω | 4 Ω | 8 Ω | 100 V / 1,9k - 940 - 470 Ω |
| Efficiency | 83.4 dB | 85.5 dB | 82.8 dB | 86.8 dB |
| Max. SPL | 100 dB | 102 dB | 104 dB | 99.5 dB |
| Frequency response | 109 - 21,000 Hz | 99 - 21,000 Hz | 95 - 21,000 Hz | 112 - 21,000 Hz |
| CONO puro 50 | CONO puro M | CONO puro S | CONO puro V | |
|---|---|---|---|---|
| Weight | 710 g | 750 g | 1.3 kg | 1 kg |
| Ceiling cut-out | 120mm | 120mm | 120mm | 120mm |
| Installation depth | 140 mm | 140 mm | 140 mm | 140 mm |
| Connections | Block terminal | Block terminal | Gold-plated pole terminal | Block terminal |
